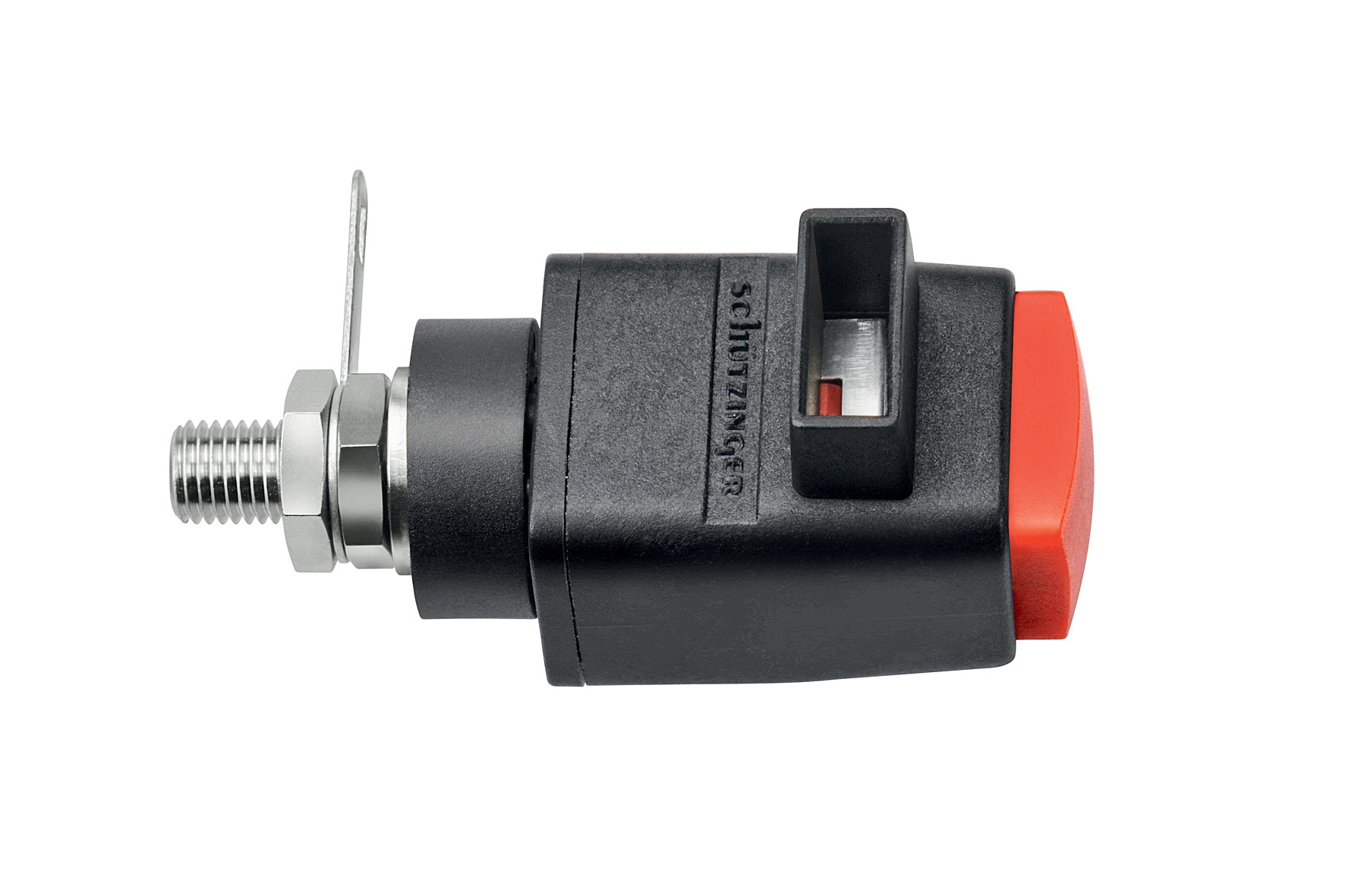

Quick release terminal sdk 5230

Safety Quick Release Terminal

    Fully Insulated for metal panels
    Contact parts: Nickel Plated
    Insulation: PA 6.6 (Polyamid)
    Panel Thickness 0.8 mm - 5 mm


Technical Data

  •     Max Torque for nuts: 120 Ncm
  •     Terminal :soldering loop or cable lug
  •     Transistion Resistance <5 mΩ
  •     Rated Voltage: 300 V CAT II
  •     Rated Current: 16 A
  •     Operating Temperature: -25°C - +90°C
